TOYO-INTL WINCHLINE TAIL CHAINS A108
TOYO-INTL WINCHLINE TAIL CHAINS A108.

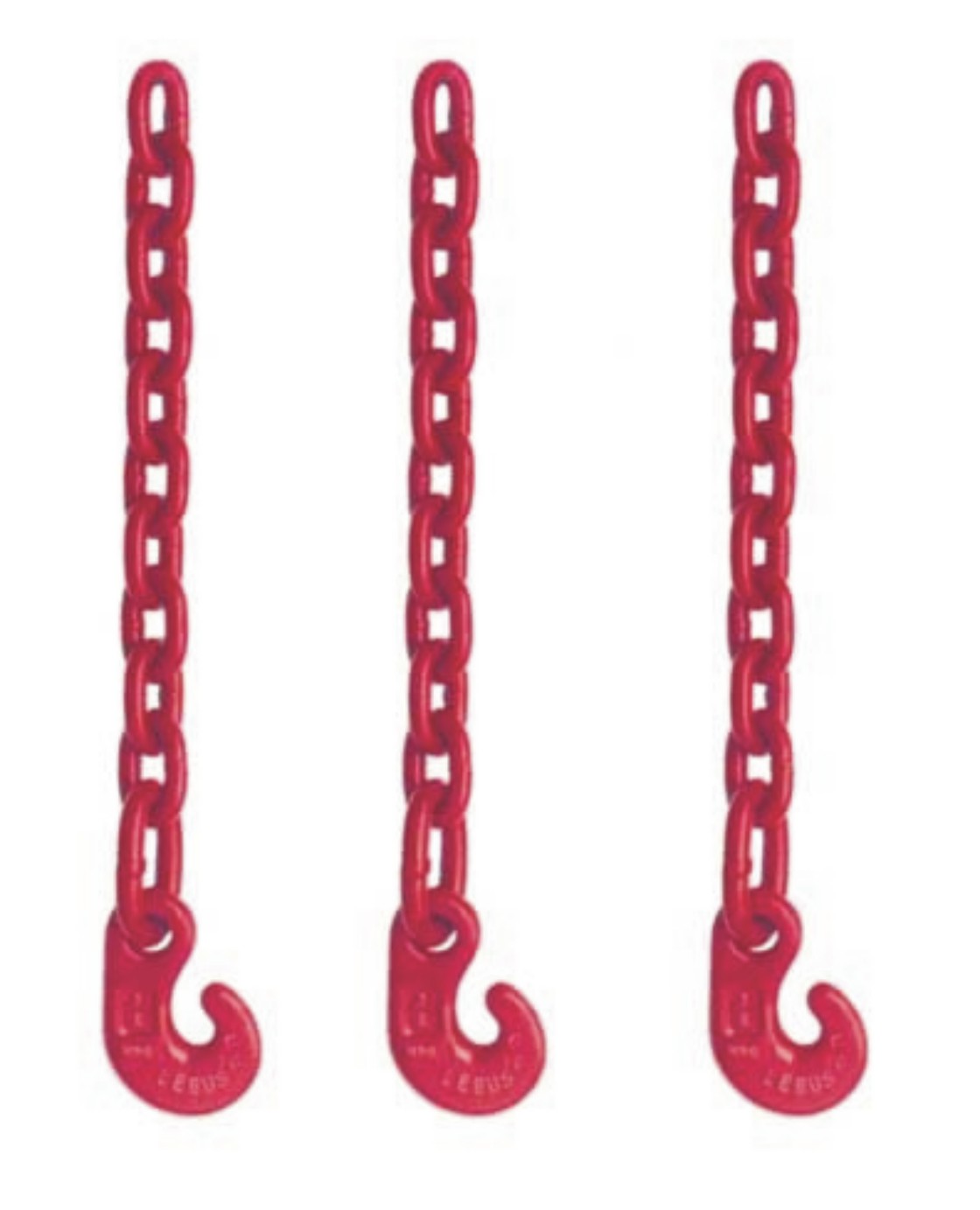

Winchline Tail Chains
Hooks are Forged – Quenched and Tempered.
Individually Proof Tested.
TOYO-INTL 4 High Test Carbon Steel from 5/16thru 5/8
Meets or exceeds DOT and CVSA Cargo Securement Tie-Down Guidelines,November 2003.
THE SPECIFICATION:
| Wire Rope
Diameter (in.)* |
A-108
Stock No |
Working
Load Limit (Ibs.) |
Length
(in.) |
No.of
Links |
Weight
Each (Ibs.) |
| 5/16-3/8 | 1081473 | 5400 | 18 | 11 | 3.0 |
| 1/2-5/8 | 1081482 | 13000 | 18 | 7 | 6.2 |
| 3/4-7/8 | 1081511 | 34200 | 24 | 8 | 18.2 |
| 1-1 1/8 | 1081516 | 47700 | 18 | 5 | 21.2 |
| 1-1 1/8 | 1081525 | 47700 | 24 | 7 | 23.3 |
| Wire Rope
Diameter (in.)* |
A-108
Stock No |
Working
Load Limit (Ibs.) |
Length
(in.) |
No.of
Links |
Weight
Each (Ibs.) |
| 5/16-3/8 | 1081473 | 5400 | 18 | 11 | 3.0 |
| 1/2-5/8 | 1081482 | 13000 | 18 | 7 | 6.2 |
| 3/4-7/8 | 1081511 | 34200 | 24 | 8 | 18.2 |
| 1-1 1/8 | 1081516 | 47700 | 18 | 5 | 21.2 |
| 1-1 1/8 | 1081525 | 47700 | 24 | 7 | 23.3 |
