Care and Maintenance
Safe and efficient work begins with correct care and maintenance. Spend a little time before and after each use to check the slings. Such proper care and
maintenance will assure you safety and long service life.
1. Daily and Periodical Check
Simple visual appearance inspection and physical checks for deformation, scratches, wear, elongation, and so forth. will assure you safe operation.
2. Stocking of spare Parts for Emergency Repair
TOYOINTL recommends to stock replacement parts or spare chain slings for fast and optimum repair of chain slings. Never use fittings taken from other slings or
smaller capacity slings even for a temporary use.
3. Keeping of  Record of Chain Slings
TOYOINTL recommends to keep historical records of each chain sling and to assign a specific chain sling safety controller.

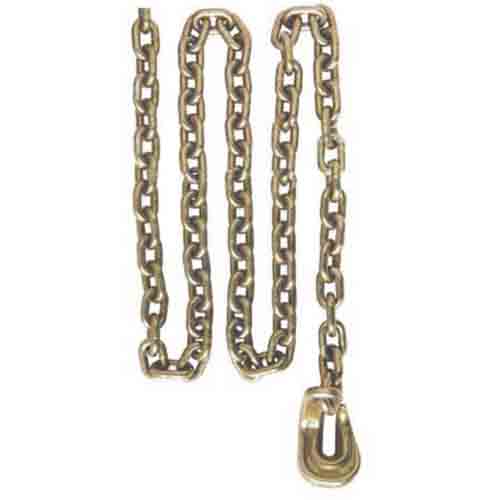

4. The Grab Hook
The Grab Hook has a narrow jaw to accept a link of chain. However, the chain held by the grab hook under tension is not ideally supported in a straight line due to
its shape and design. The chain slings complete with grab hooks must be de-rated by 30% at least. The grab hook should not be used for slings shortening purposes.

 THE SPECIFICATION :

<tbody=1>

Chain dia	Length	N.W.
7.1mm	9FT	3.3kgs
8.0mm	9FT	4.2kgs
10.0mm	9FT	6.5kgs
13.0mm	9FT	10.8kgs
7.1mm	18FT	6.3kgs
8.0mm	18FT	8.5kgs
10.0mm	18FT	13.2kgs
13.0mm	18FT	21.6kgs
